About

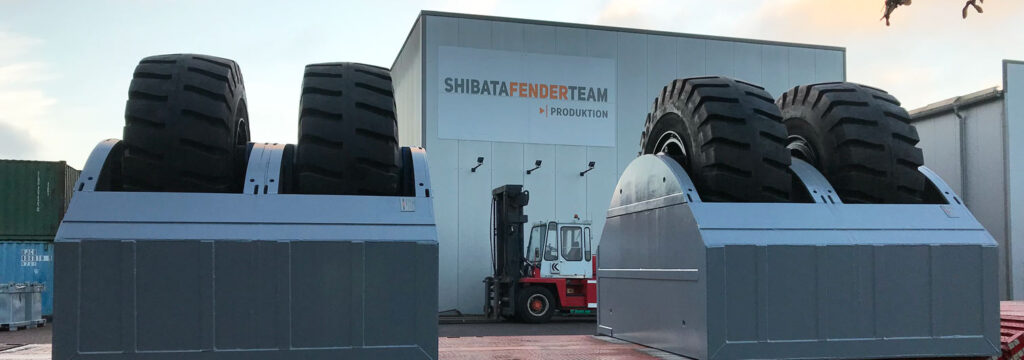

The Wheel Fender is a more advanced solution compared to the simple design of the Roller Fender. It features maintenance-free bearings, typically made from stainless steel and composite materials. Thanks to its configuration—with additional back rollers and a sliding shaft—the Wheel Fender offers enhanced energy absorption capabilities.
Wheel Fenders can be installed in various configurations to suit specific operational needs, such as:
Double or triple stacked units to accommodate larger tidal variations
Side-by-side arrangements for guiding vessels through narrow passages
Angled installations to match the flare angle of a vessel’s hull
While standard sizes are available, most Wheel Fender applications require a tailored design. ShibataFenderTeam welcomes your design input so we can engineer the optimal type, size, and layout for your specific project.
Characteristics
- Higher energy absorption compared to Roller Fenders due to triple deflection
- Multipurpose use
- Guiding system & energy absorption
- Typically maintenance free
- No friction due to fender rotation
Applications
- Entrance to locks, dry docks and other narrow or exposed areas

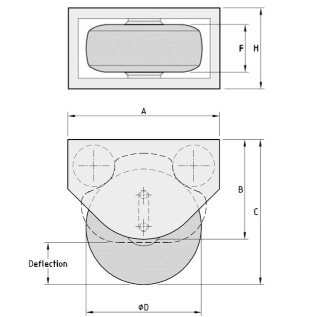

Dimensions
| Fender Size | A [mm] | B [mm] | C [mm] | Ø D [mm] | H [mm] | F [mm] |
|---|---|---|---|---|---|---|
| WF 110 x 45 | 1,700 | 1,000 | 1,450 | 1,080 | 900 | 460 |
| WF 130 x 50 | 2,000 | 1,200 | 1,750 | 1,300 | 1,000 | 510 |
| WF 175 x 70 | 2,650 | 1,500 | 2,200 | 1,750 | 1,150 | 690 |
| WF 200 x 75 | 2,750 | 1,750 | 2,550 | 1,980 | 1,250 | 760 |
| WF 250 x 100 | 3,350 | 2,200 | 3,200 | 2,550 | 1,600 | 970 |
| WF 290 x 110 | 4,200 | 2,500 | 3,750 | 2,900 | 1,700 | 1,020 |
Downloads
Click here to download Product Catalogue
