About

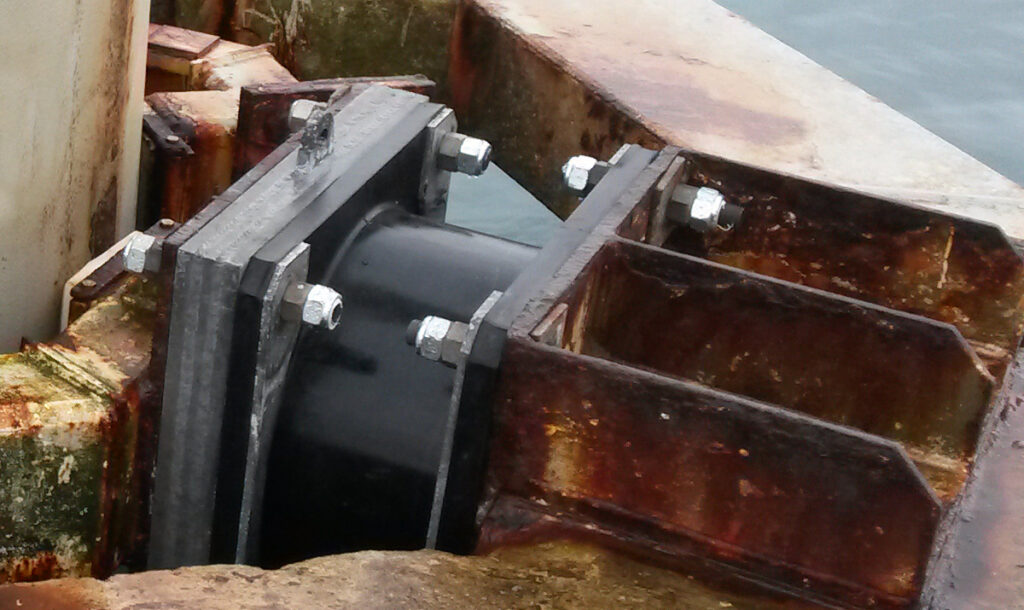

The Shear Fender features upper and lower steel plates embedded within a robust rubber body. While the rubber core offers high stiffness under compression, it allows controlled deflection under shear loads.
Shear Fenders are available in two standard designs and a range of sizes to suit various applications
Characteristics
- Highly customized solution for special applications
Applications
- Various applications in a marine environment

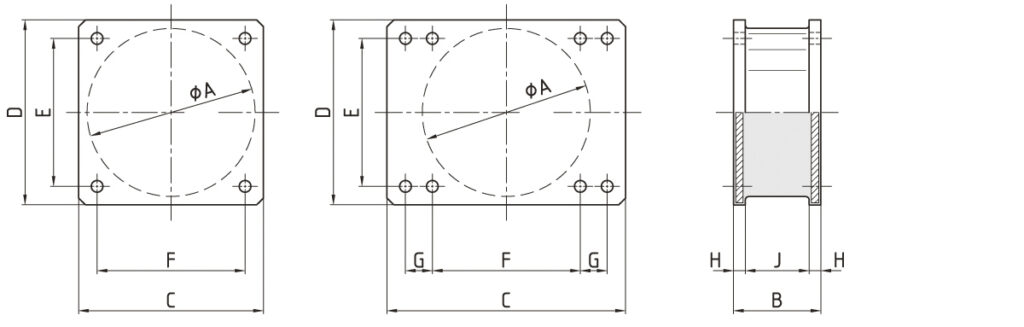

Dimensions
| Type | Ø A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | J [mm] | H [mm] | Bolts | Energy [kNm] | Reaction [kN] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SF400-180 | 400 | 180 | 525 | 525 | 405 | 405 | – | 136 | 22 | M24 | 10.0 | 147 |
| SF500-260 | 500 | 260 | 710 | 550 | 440 | 430 | 80 | 190 | 35 | M30 | 25.5 | 250 |
| SF500-275 | 500 | 275 | 610 | 610 | 510 | 510 | – | 231 | 32 | M24 | 24.9 | 216 |
Downloads
Click here to download Product Catalogue
