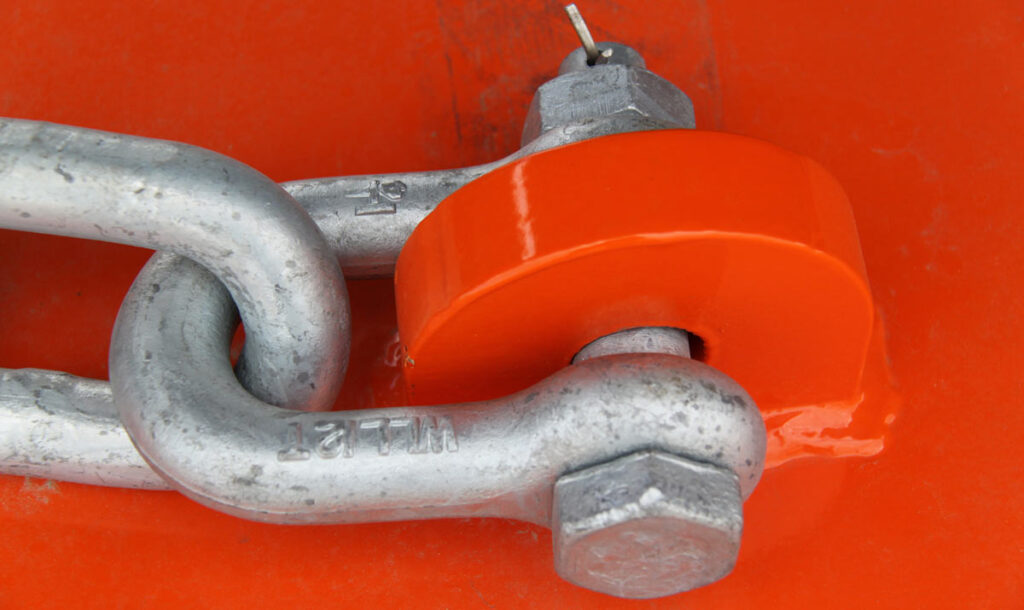

Shackles are available in two types, D Type and Bow Type.

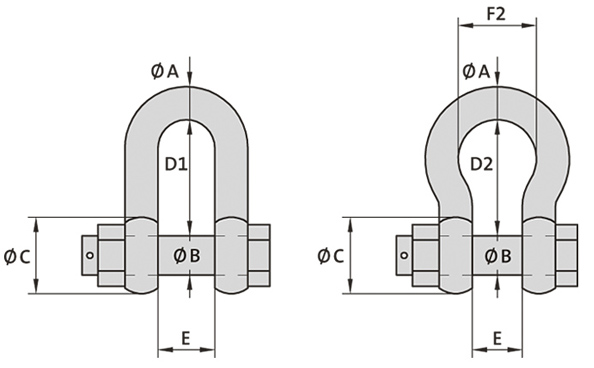

Shackle Dimensions
| D-Type | Bow-Type | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| WLL [t] | Ø A [mm] | Ø B [mm] | Ø C [mm] | E [mm] | D1 [mm] | Weight [kg] | D2 [mm] | F2 [mm] | Weight [kg / m] |
| 2.0 | 13 | 16 | 34 | 22 | 43 | 0.4 | 51 | 32 | 0.4 |
| 3.25 | 16 | 19 | 40 | 27 | 51 | 0.7 | 64 | 43 | 0.8 |
| 4.75 | 19 | 22 | 47 | 31 | 59 | 1.1 | 76 | 51 | 1.3 |
| 6.5 | 22 | 25 | 53 | 36 | 73 | 1.5 | 83 | 58 | 1.9 |
| 8.5 | 25 | 28 | 60 | 43 | 85 | 2.6 | 95 | 68 | 2.8 |
| 9.5 | 28 | 32 | 67 | 47 | 90 | 3.3 | 108 | 75 | 3.8 |
| 12.0 | 32 | 35 | 74 | 51 | 94 | 4.7 | 115 | 83 | 5.3 |
| 13.5 | 35 | 38 | 80 | 57 | 115 | 6.2 | 133 | 95 | 7.0 |
| 17.0 | 38 | 42 | 84 | 60 | 127 | 7.6 | 146 | 99 | 8.8 |
| 25.0 | 45 | 50 | 104 | 74 | 149 | 12.8 | 178 | 126 | 15.0 |
Downloads
For more details Click here
Chain System.
Most fender systems with steel panels require chains for weight support and to limit tension and shear in the rubber unit.
A typical SFT chain system consists of compatible items to allow optimal performance of the fender system. These are:
- Anchor bolts
- Brackets
- Washers & Washer Plates
- Bolts & Nuts
- Shackles
- Chain tensioner (recommended)
- Chain
Fixings
Only properly fixed fenders ensure worry free operation. SFT supplies anchors for new and existing concrete in different sizes, qualities and finishes.
