About

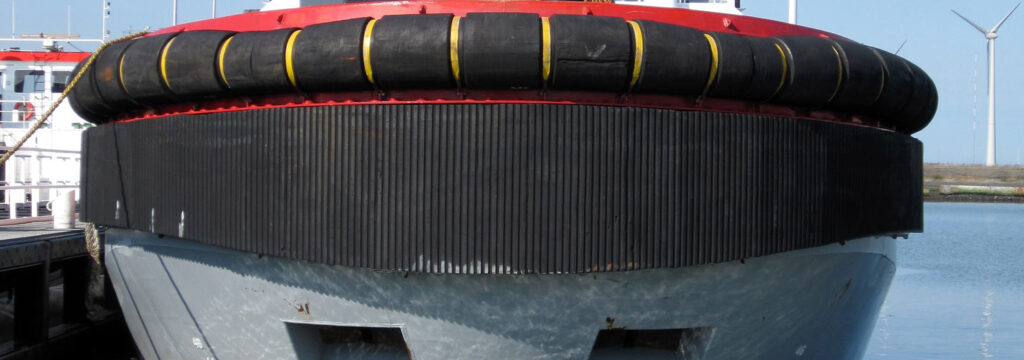

These three types of fenders are commonly used to protect the bow and stern of vessels, often in combination with Cylindrical Tug Boat Fenders. Their large contact areas help distribute pressure evenly on the hull, while grooves provide enhanced grip. M Fenders, W Fenders, and Keyhole Fenders are available with either profiled or smooth surfaces.
Characteristics
- Low friction coefficient
- Very high abrasion resistance
- UV and ozone resistant
- Reduced conductivity optinal
- 100% recycable & non-rotting
- Available in diffrent colors and bendable
Applications
- Tug Boats
- Icebreakers
- Work & supply boats
- Other applications & structures like bridge and pile protection
M fender dimensions
| Type | A [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
E [mm] |
F [mm] |
Ø Pin [mm] |
Lmax [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|---|---|---|---|
| M40 | 400 | 200 | 40 | 23 | 50 | 150 | 20 | 2,000 | 56 |
| M50 | 500 | 250 | 50 | 27 | 60 | 190 | 24 | 2,000 | 89 |
| M60 | 600 | 300 | 60 | 33 | 70 | 230 | 30 | 2,000 | 132 |
| M80 | 800 | 400 | 80 | 44 | 95 | 305 | 36 | 2,000 | 233 |
W fender dimensions
| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
K [mm] |
Lmax [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|---|---|
| W32 | 320 | 200 | 280 | 100 | 50 | 2,000 | 51 |
| W40 | 400 | 250 | 350 | 110 | 55 | 2,000 | 81 |
| W48 | 480 | 300 | 426 | 135 | 65 | 2,000 | 120 |
| W50 | 500 | 450 | 420 | 90 | 75 | 2,000 | 180 |
Keyhole fender dimensions
| H [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
Ø F [mm] |
Lmax [mm] |
Weight [kg / m] |
Ø Pin [mm] |
|---|---|---|---|---|---|---|---|
| 200 | 35 | 130 | 28 | 90 | 2,000 | 33 | 25 |
| 250 | 50 | 150 | 33 | 100 | 2,000 | 54 | 30 |
| 300 | 60 | 180 | 33 | 115 | 2,000 | 80 | 30 |
| 350 | 70 | 210 | 33 | 125 | 2,000 | 114 | 30 |
Wing-Type fender dimensions
| Fender Type |
H [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|
| WD 180 | 180 | 100 | 25 | 50 | 10.5 |
| WD 215 | 215 | 150 | 30 | 75 | 20.3 |
| WD 245 | 245 | 150 | 30 | 75 | 21.3 |
| WD 280 | 280 | 200 | 40 | 100 | 35.8 |
| WD 320 | 320 | 200 | 40 | 100 | 37.6 |
| WD 370 | 370 | 250 | 50 | 125 | 57.0 |
| WD 410 | 410 | 250 | 50 | 125 | 59.0 |
MC fender dimensions
| Fender Type |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
|---|---|---|---|---|---|
| 300H | 300 | 360 | 40 | 200 | 280 |
| 400H | 400 | 500 | 50 | 300 | 410 |
| 500H | 500 | 562 | 50 | 300 | 472 |
| 600H | 600 | 700 | 125 | 420 | 550 |
