About
Fender Bars are molded rubber units that can be installed in horizontal, vertical, or diagonal orientations.
They are available in square or rectangular profiles, typically ranging from 150 mm to 300 mm, with customizable lengths to meet specific client requirements. An embedded steel plate enhances structural strength, enabling the bars to withstand heavy-duty impacts and shear forces.
Characteristics
- Highly customized solution for special applications
Applications
- Various applications in a marine environment

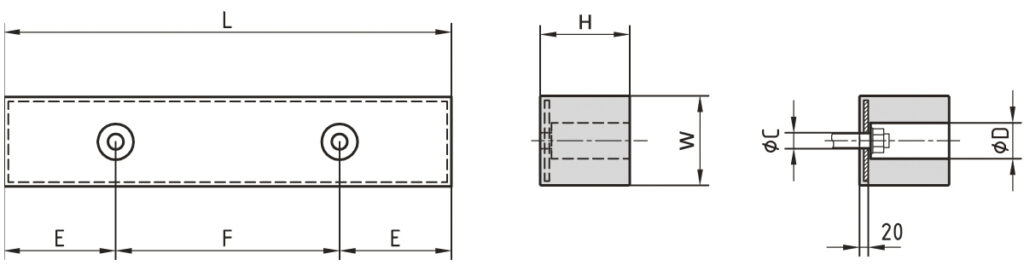

Dimensions
| Type | W | H | E | F | Anchors | Weight kg / m |
|---|---|---|---|---|---|---|
| FB15-15 | 150 | 150 | 250 | 500 | M24 | 38 |
| FB15-20 | 150 | 200 | 250 | 500 | M24 | 43 |
| FB20-20 | 200 | 200 | 250 | 500 | M30 | 65 |
| FB20-25 | 200 | 250 | 250 | 500 | M30 | 77 |
| FB20-30 | 200 | 300 | 250 | 500 | M30 | 88 |
