About

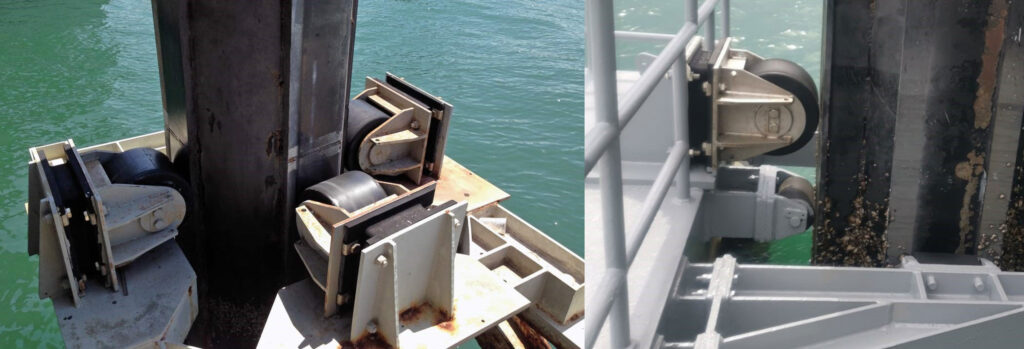

The Cushion Roller shares a similar design with the Roller Fender but includes an additional rubber cushion to absorb impacts more effectively. It is typically equipped with maintenance-free stainless steel bearings. Cushion Rollers are primarily used to guide pontoons and floating structures while offering enhanced protection.
Characteristics
- Rubber cushion to withstand berthing impacts
- Low abrasion on coatings
- Maintenance-free bearings
- Very low noise level
Applications
- Pontoon pile guides
- Other floating structures
Dimensions
| Type | B [mm] | D [mm] | H1 [mm] | H2 [mm] | H3 [mm] | T [mm] | H [mm] | Design / Load [kn] | Anchors / Bolts | Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| CR10 | 450 | 370 | 185 | 215 | 130 | 12 | 542 | 100 | M20 | 130 |
| CR15 | 460 | 370 | 185 | 215 | 130 | 12 | 542 | 150 | M20 | 150 |
| CR20 | 530 | 370 | 185 | 215 | 130 | 16 | 546 | 200 | M24 | 200 |
