The Chemical Anchor is used for existing concrete or where Cast-in Anchors should be avoided. The threaded rod of the anchor is bonded with special grout into a drilled hole. They are available in different sizes and finishes, as well as stainless steel or galvanized.

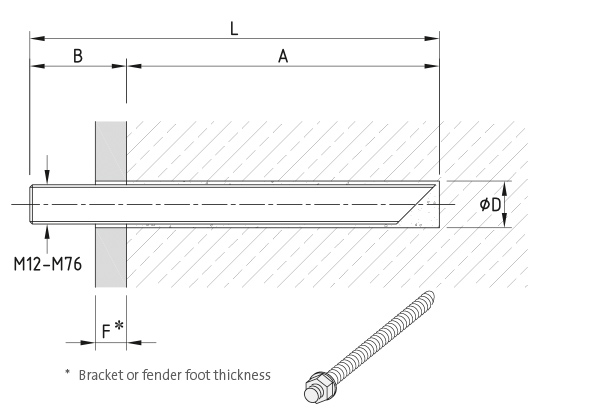

Chemical Anchor Dimensions
| Anchor Size | A [mm] | D [mm] | E [mm] | Grout volume [ml] |
|---|---|---|---|---|
| M16 | 140 | 18 | 13 | 18 |
| M20 | 170 | 22 | 16 | 30 |
| M24 | 210 | 28 | 19 | 66 |
| M30 | 280 | 35 | 24 | 130 |
| M36 | 360 | 42 | 29 | 232 |
| M42 | 420 | 48 | 34 | 325 |
| M48 | 460 | 55 | 38 | 460 |
| M56 | 500 | 62 | 45 | 550 |
| M64 | 560 | 70 | 51 | 725 |
| M76 | 670 | 84 | 61 | 1,200 |
Downloads
For more details Click here
Chain System.
Most fender systems with steel panels require chains for weight support and to limit tension and shear in the rubber unit.
A typical SFT chain system consists of compatible items to allow optimal performance of the fender system. These are:
- Anchor bolts
- Brackets
- Washers & Washer Plates
- Bolts & Nuts
- Shackles
- Chain tensioner (recommended)
- Chain
Fixings
Only properly fixed fenders ensure worry free operation. SFT supplies anchors for new and existing concrete in different sizes, qualities and finishes.
