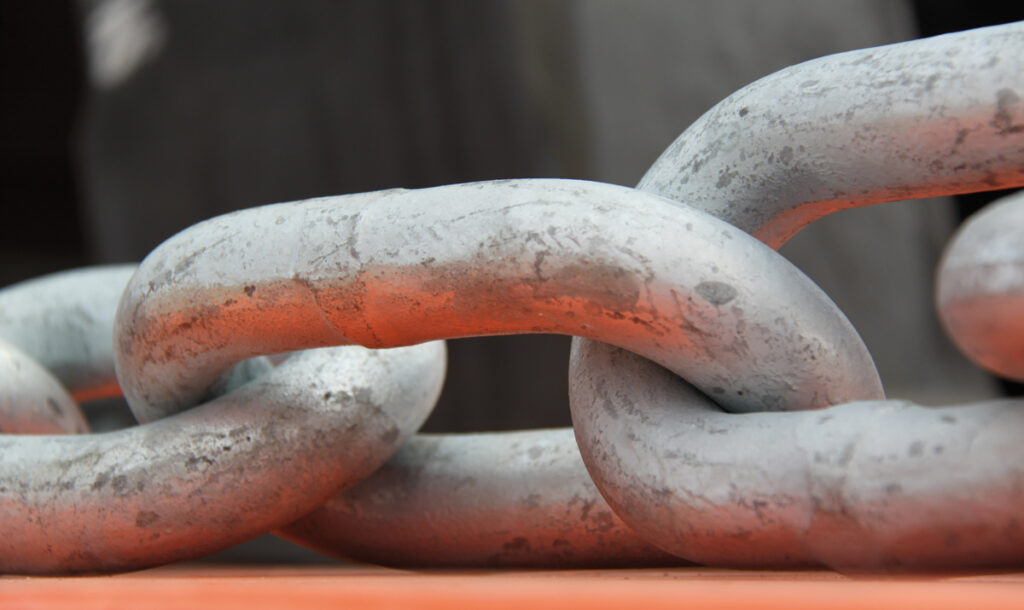

SFT usually supplies open link chains, stud link chains are available on request. It is recommended to use chain tensioners.
Washer Dimensions

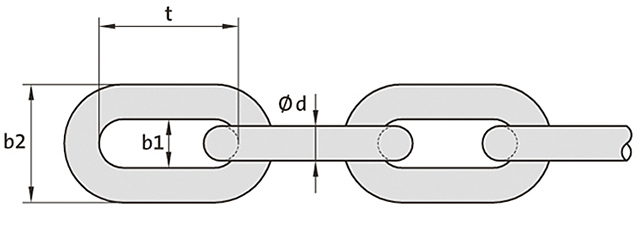

| Chain 4xd | Chains 5xd | K2 | K3 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø d [mm] | t [mm] | b1 [mm] | b2 [mm] | Weight [kg / m] | t [mm] | b1 [mm] | b2 [mm] | Weight [kg / m] | MBL [kN] | MBL [kN] |
| 14 | 56 | 20 | 48 | 3.8 | 70 | 21 | 49 | 3.7 | 124 | 154 |
| 16 | 64 | 22 | 54 | 5.0 | 80 | 24 | 56 | 4.8 | 160 | 202 |
| 18 | 72 | 25 | 61 | 6.3 | 90 | 27 | 63 | 6.0 | 209 | 262 |
| 20 | 80 | 28 | 68 | 7.8 | 100 | 30 | 70 | 7.5 | 264 | 330 |
| 22 | 88 | 31 | 75 | 9.4 | 110 | 33 | 77 | 9.0 | 304 | 380 |
| 25 | 100 | 35 | 85 | 12.1 | 125 | 38 | 88 | 11.6 | 393 | 491 |
| 28 | 112 | 39 | 95 | 15.2 | 140 | 42 | 98 | 14.6 | 492 | 616 |
| 30 | 120 | 42 | 102 | 17.4 | 150 | 45 | 105 | 16.7 | 566 | 706 |
| 32 | 128 | 45 | 109 | 19.8 | 160 | 48 | 112 | 19.0 | 644 | 804 |
| 35 | 140 | 49 | 119 | 23.8 | 175 | 53 | 123 | 22.8 | 770 | 964 |
| 38 | 152 | 53 | 129 | 28.0 | 190 | 57 | 133 | 26.9 | 900 | 1,130 |
| 40 | 160 | 56 | 136 | 31.0 | 200 | 60 | 140 | 29.8 | 1,010 | 1,260 |
| 45 | 180 | 63 | 153 | 39.3 | 225 | 68 | 158 | 37.7 | 1,275 | 1,590 |
| 50 | 200 | 70 | 170 | 48.5 | 250 | 75 | 175 | 46.5 | 1,570 | 1,960 |
Downloads
For more details Click here
Chain System.
Most fender systems with steel panels require chains for weight support and to limit tension and shear in the rubber unit.
A typical SFT chain system consists of compatible items to allow optimal performance of the fender system. These are:
- Anchor bolts
- Brackets
- Washers & Washer Plates
- Bolts & Nuts
- Shackles
- Chain tensioner (recommended)
- Chain
Fixings
Only properly fixed fenders ensure worry free operation. SFT supplies anchors for new and existing concrete in different sizes, qualities and finishes.
