Cast-in Anchors are used for new concrete. They consist of a socket and a tail with square washer plate. Cast-in Anchors are available in different sizes and finishes, as well as stainless steel or galvanized.

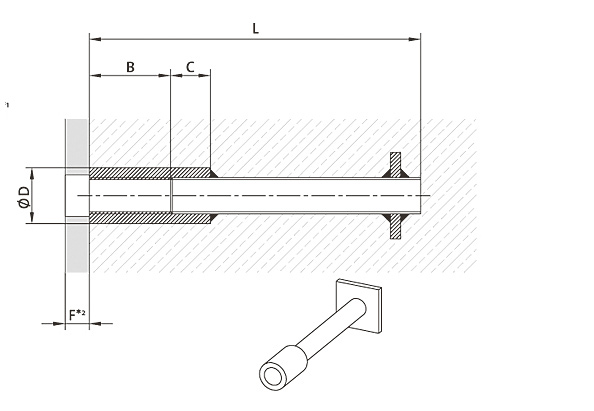

Cast-in Anchor Dimensions
| Anchor Size | L [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| M20 | 214 | 50 | 20 | 30 | 0.8 |
| M24 | 258 | 60 | 25 | 35 | 1.5 |
| M30 | 318 | 70 | 30 | 45 | 2.4 |
| M36 | 328 | 80 | 40 | 55 | 3.7 |
| M42 | 416 | 85 | 45 | 65 | 6.0 |
| M48 | 431 | 100 | 50 | 75 | 9.0 |
| M56 | 436 | 105 | 60 | 85 | 14.0 |
| M64 | 600 | 128 | 80 | 100 | 23.0 |
| M76 | 700 | 152 | 90 | 114 | 42.0 |
Downloads
For more details Click here
Chain System.
Most fender systems with steel panels require chains for weight support and to limit tension and shear in the rubber unit.
A typical SFT chain system consists of compatible items to allow optimal performance of the fender system. These are:
- Anchor bolts
- Brackets
- Washers & Washer Plates
- Bolts & Nuts
- Shackles
- Chain tensioner (recommended)
- Chain
Fixings
Only properly fixed fenders ensure worry free operation. SFT supplies anchors for new and existing concrete in different sizes, qualities and finishes.
