About
Cylindrical Tug Boat Fenders are designed to protect the bow and stern of vessels, specifically for pushing against flared hulls. The basic design is that of a cylindrical fender, enhanced with circumferential grooves to accommodate installation using chains or nylon straps, as well as tapered ends. These fenders are typically secured with through chains.
They are available in standard diameters up to 1000 mm and in continuous or segmented lengths up to 20 meters, with length primarily limited by handling and transportation constraints. Longer fenders are usually divided into two or three sections.
Characteristics
- High abrasion resistant
- Non-marking navy grey color optional
- Light weight
- Ideal for tight corners
Applications
- Tug Boats
- Icebreakers
- Work & supply boats
- Other applications & structures like bridge and pile protection

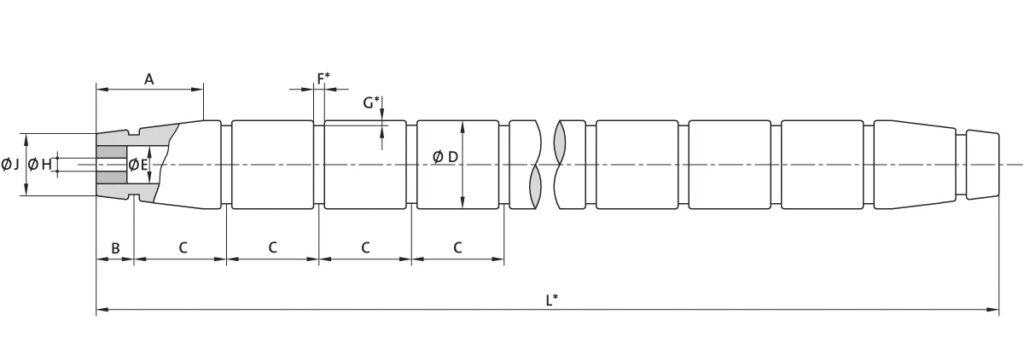

Dimensions
| Ø D [mm] | B [mm] | C [mm] | A [mm] | Ø E [mm] | Ø H [mm] | Ø J [mm] |
|---|---|---|---|---|---|---|
| 200 | 150 | 530 | 500 | 100 | 75 | 150 |
| 250 | 200 | 570 | 500 | 125 | 75 | 190 |
| 300 | 225 | 600 | 700 | 150 | 75 | 225 |
| 350 | 250 | 630 | 800 | 175 | 100 | 260 |
| 400 | 300 | 670 | 800 | 200 | 100 | 300 |
| 500 | 300 | 730 | 900 | 250 | 100 | 375 |
| 600 | 350 | 800 | 900 | 300 | 125 | 450 |
| 700 | 350 | 860 | 1,000 | 350 | 125 | 525 |
| 800 | 350 | 930 | 1,000 | 400 | 125 | 600 |
| 900 | 350 | 1,000 | 1,100 | 450 | 150 | 675 |
| 1,000 | 350 | 1,060 | 1,200 | 500 | 150 | 750 |
Downloads
Click here to download Product Catalogue
