Washers and Washer Plates are available in two types, DIN 125 and special plates for specific fender types (SPC, CSS, V, FE).
The supplied bolts and nuts are suitable for the designed anchors, typically in stainless steel or galvanised.

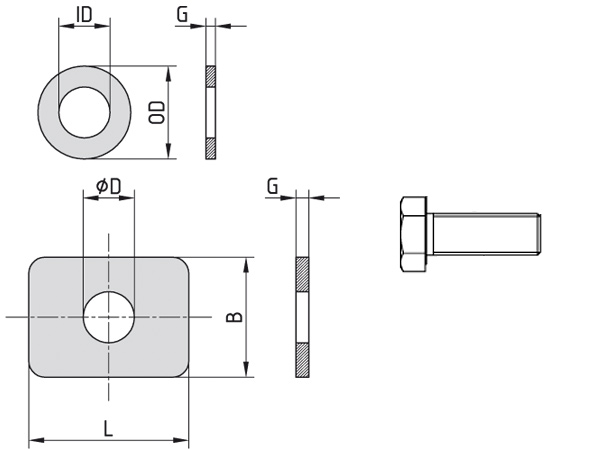

Washer Dimensions
| DIN 125 | Special washer plates for | SPC-, CSS-, SX-, SX-P-, | SH-Fender, FE | ||||
|---|---|---|---|---|---|---|---|
| Anchor Size | ID [mm] | OD [mm] | G [mm] | LxB [mm] | D [mm] | G [mm] | Weight [kg] |
| M16 | 17 | 30 | 3 | – | – | – | – |
| M20 | 21 | 37 | 3 | 50×45 | 22 | 5 | 0.08 |
| M24 | 25 | 44 | 4 | 75×55 | 26 | 6 | 0.15 |
| M30 | 31 | 56 | 4 | 85×65 | 32 | 6 | 0.30 |
| M36 | 37 | 66 | 5 | 100×75 | 38 | 6 | 0.36 |
| M42 | 45 | 78 | 8 | 150×90 | 45 | 9 | 0.97 |
| M48 | 52 | 92 | 8 | 175×100 | 52 | 9 | 1.26 |
| M56 | 62 | 105 | 10 | 185×125 | 62 | 10 | 1.85 |
| M64 | 70 | 115 | 10 | 200×130 | 70 | 10 | 2.08 |
| M76 | 80 | 130 | 12 | 230×150 | 80 | 12 | 3.30 |
Downloads
For more details Click here
Chain System.
Most fender systems with steel panels require chains for weight support and to limit tension and shear in the rubber unit.
A typical SFT chain system consists of compatible items to allow optimal performance of the fender system. These are:
- Anchor bolts
- Brackets
- Washers & Washer Plates
- Bolts & Nuts
- Shackles
- Chain tensioner (recommended)
- Chain
Fixings
Only properly fixed fenders ensure worry free operation. SFT supplies anchors for new and existing concrete in different sizes, qualities and finishes.
